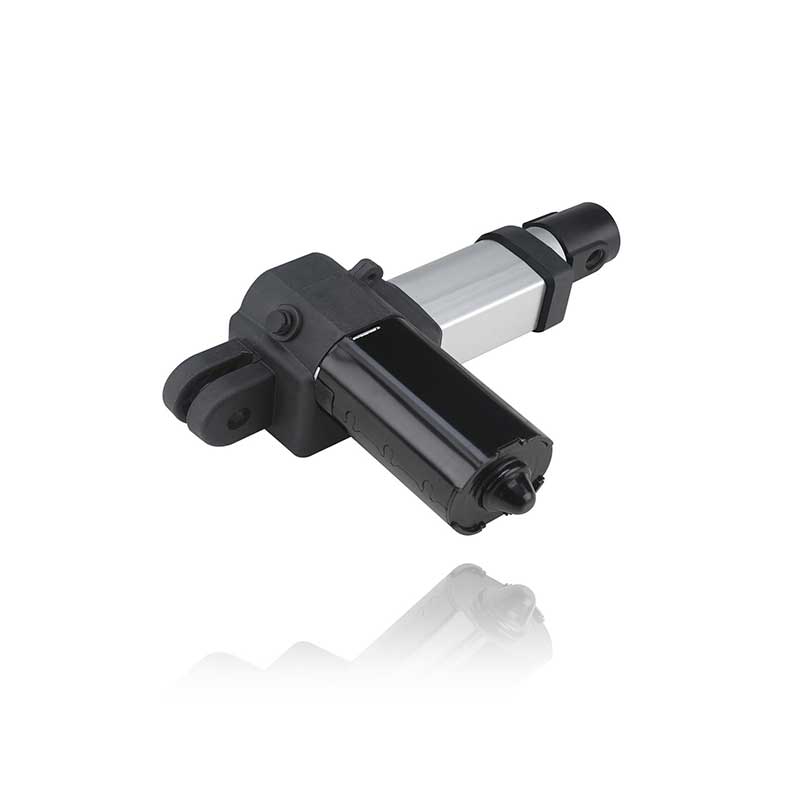

FD150 Sofa Slide Actuator

Features:

  • Low voltage DC motor 24V-29V
  • Load capacity of 500-1500N
  • Speed from 4mm to 48mm/s
  • Stroke of 1000mm max
  • Minimum retracted installation length is 155mm+stroke
  • Working frequency by on 2 min/off 8 min
  • Controlled by limit switch with the tolerance by±2mm
  • Apply to recliner, functional sofa lifting mechanisms

FD150 is one slide drive type linear actuator for sofa seating adjustment. With handset, switch, power supply accessory, PJMTEC can offer a good solution of smart and comfortable function sofa. Competitive price, short time delivery, custom made service for furniture industry are our advantages.

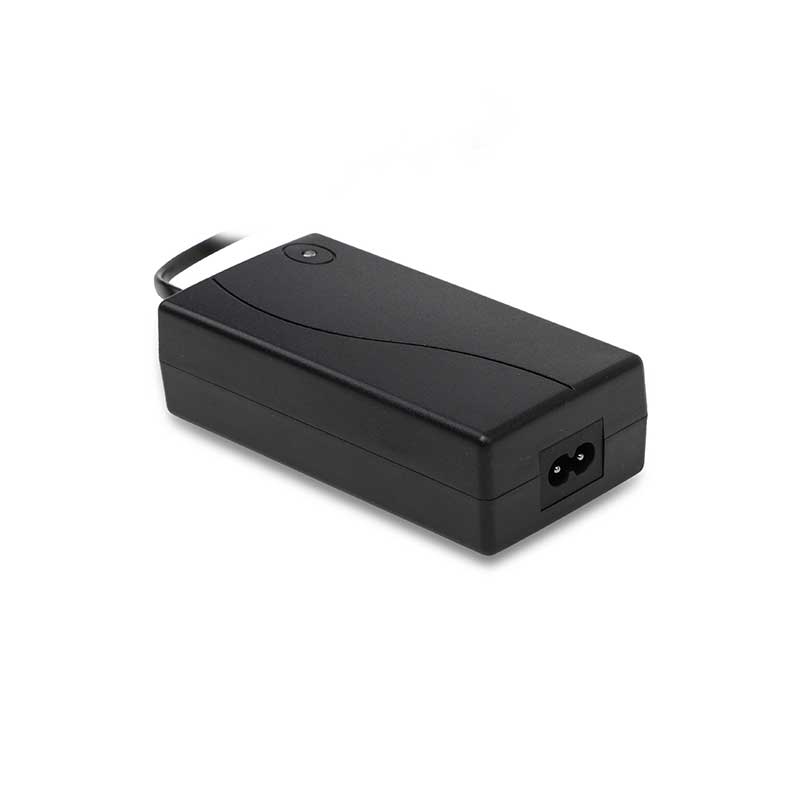

Power Supply

Input voltage is AC100-240V 50/60 Hz

Output is DC 29V 2A

Plug types can be  US, JP, UK, EURO, AUS plugs

Mounting bracket is one option for your sofa

Get a Quote

Handset with wire

Control 2-3 linear actuators

Home button function can be one option

Get a Quote

Switch

Control 1-2 linear actuators

A USB port for charging phone or ipad device with 1A output

2 button or 4 button available

More switch panels option or tailor-made

Get a Quote
